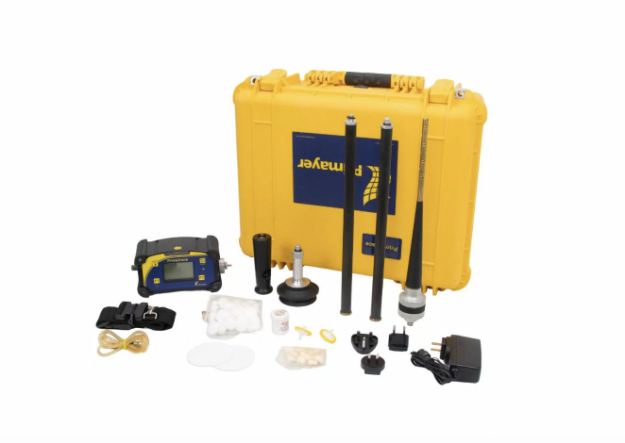

PrimeTrace komplekts

PrimeTrace – Hydrogen Gas Leak Detection System

Manufacturer: Ovarro
Get a Quote
PrimeTrace is an advanced gas detection system designed for pinpointing water leaks in all types of pipe materials — including metal, plastic, and composite. It uses hydrogen gas detection, one of the most sensitive and reliable methods available, capable of identifying even the smallest leaks that traditional acoustic methods may miss. The system operates with a safe 5% hydrogen and 95% nitrogen gas mixture, which is non-flammable, non-toxic, and environmentally safe. The tracer gas is injected into the water pipe through a hydrant or service connection, travels with the water flow, and escapes at the leak point. Because hydrogen is the lightest element, it rises through soil and flooring to the surface, where it can be easily detected by the PrimeTrace sensors.
Description

Key Benefits

  • High sensitivity with dual-sensor technology:
    • Semiconductor sensor – ultra-fast response with 0.1 ppm H₂ resolution
    • Thermal mass sensor – accurate detection of higher H₂ concentrations

  • Sensors protected from moisture with dual filtration

  • Integrated vacuum pump – increases detection sensitivity

  • Lightweight probes for easy and flexible field use

  • Optional Injection Kit – improves gas dissolution and extends detection window

Technical Specifications

  • Detection method: Hydrogen gas (5% H₂ + 95% N₂)

  • Sensitivity: Up to 0.1 ppm H₂

  • Measurement ranges:
    • Low range – 0 to 1000 ppm H₂
    • High range – 0 to 5% H₂

  • Sensor type: Semiconductor and thermal mass combination

  • Operating temperature: –10°C to +50°C

  • Protection: Dual moisture filters, IP65 housing

  • Power supply: Rechargeable battery, long operating life

  • Accessories: Injection kit, range of lightweight probes

Practical Advantages
PrimeTrace enables fast, safe, and accurate leak detection — even on plastic or low-noise networks where acoustic methods fail. It is an indispensable tool for municipal utilities, water network operators, and professional leak detection teams who demand precision and reliability in the field.
